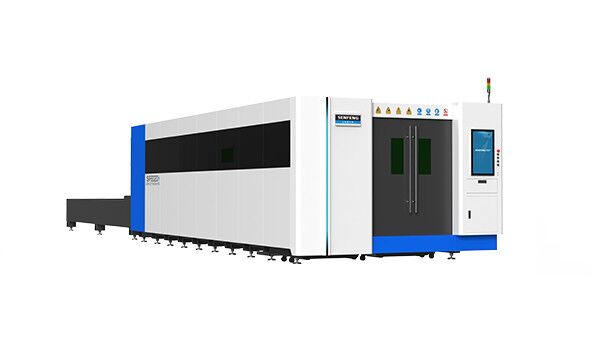

H full cover fiber laser cutting machine is a kind of metal sheet cutting fiber laser machine. Equipped with fiber laser device ,laser power from 1kw to 6kw, it is able to cut up to 25mm metal sheet. And the working area is from 3060mm*1530mm to 6060mm×2530mm.
Compared with traditional CO2, YAG, Water jet and Plasma, fiber laser cutter is the newest laser type which has obvious advantages, including top quality beam, high photoelectric efficiency, reliability and low maintenance, etc.
For more details or fiber laser cutter price, just contact us by whatsapp:+86-13210546543 or send inquiry to senfeng@sfcnclaser.com .
| Model | SF3015H / SF4020H / SF6020H / SF6025H |
| Working Area(mm) | 3060*1530（Independent distribution cabinet）/ 4060*2030/ 6060*2030/ 6060*2530 |
| X-axis Travel | 1530mm/2030mm/2530mm |
| Y -axis Travel | 3060mm/4060mm/6060mm |
| Laser Power | 1KW/1.5KW/2KW/3.3KW/4KW/6KW |
| Maximum Speed | 130m/min |
| Maximum acceleration | 1.0G |
| X/Y Axis positioning accuracy | ±0.05mm/m |
| X/Y Axis repeated positioning accuracy | ± 0.02mm |
Aerospace standards cast aluminum beam, high accuracy, good toughness, light weight, corrosion resistance, anti-oxidation,
low density, and greatly increase the processing speed.
Suitable for various focal lengths, the focus will be adjusted automatically during the cutting process, which can achieve the best cutting effect of different
thickness of metal sheet.Laser head actively avoids obstacles,greatly reducing the probability of the laser head hitting the board.
The fiber laser cutter machine base adopts high quality carbon structural steel welding, annealing treatment, artificial aging semi-finishing, five-axis center finishing, to eliminate the stress caused by welding and processing, high strength, good rigidity, long time operation of the bed without deformation, improve the processing accuracy. Sectional design can effectively reduce the energy loss of the fan.The feeding trolley and the base form a return seal to avoid the bottom air inhalation duct.
Automatic tracking, automatic nesting, double efficiency, smooth surface.
Omprehensive monitoring system
Monitor whole process
The working environment is clean and tidy
The machine dust can meet indoor emission standards
Small floor space, high space utilization, the floor space than the industry 12.5% smaller.
