Fiber Laser Cutter Machine
For more videos about small size fiber laser cutter ,just click the button.

what is small laser cutting machine?

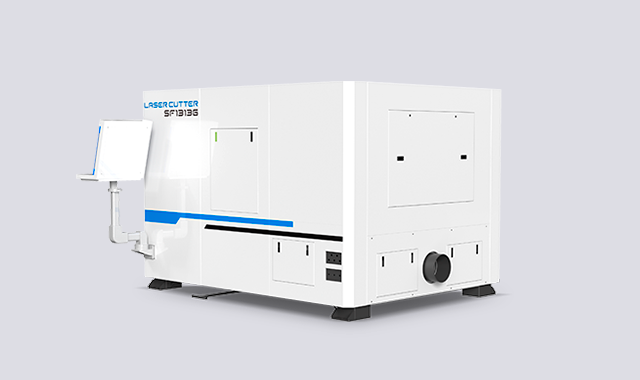

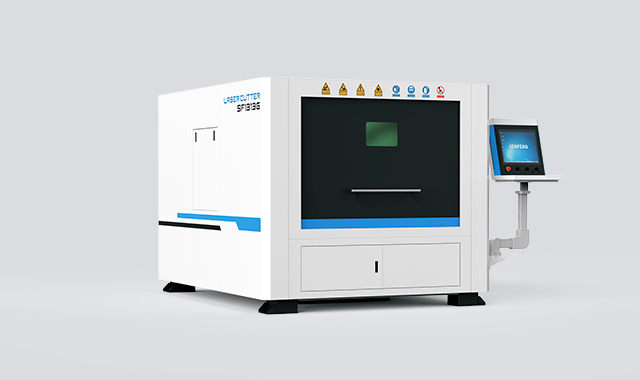

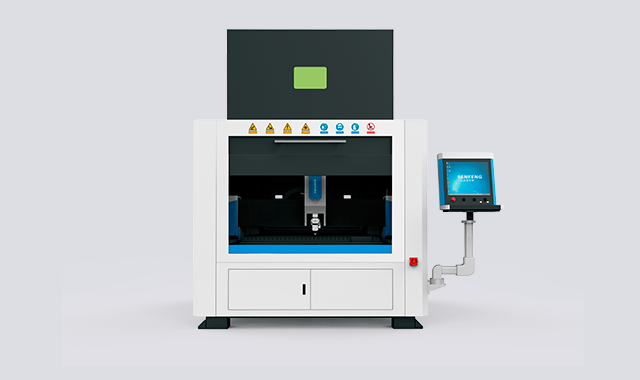

Small laser cutting machine SF1313G is a laser metal cutting machine equipped with fiber laser device with laser power from 1kw to 3kw.

Fiber laser is the newest laser type. Compared with traditional CO2, YAG, Water jet and plasma, it has obvious advantages including top quality beam, high photoelectric efficiency and maintenance free.For more details or fiber laser cutter price, just send e-mail to us.

FOLLOW US



Technical Parameters of small size fiber laser cutter


               Model                       SF1313G
small size fiber laser cutter
Working Area(mm)
1300 * 1300
Working Area(in)

  51*51

X-axis Travel 1300mm
Y -axis Travel 1300mm
Z -axis Travel 90mm
Laser Power 1kw-3kw
Maximum Speed 80m/min
X/Y Axis positioning accuracy ±0.05mm/m
X/Y Axis repeated positioning accuracy ± 0.02mm


Cutting Materials




Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy



Cutting Range





Cutting range: 0.4-20mm carbon steel, 0.4-12mm stainless steel, 0.4-10mm aluminum alloy, 0.4-8mm brass



Features of small fiber laser cutting machine



Pipe Welding Bed

High temperature annealing to reduce internal stress and deformation.

Stable Beam

Integral die-casting beam, high precision, not easy to deform, long life.

Full Function CNC System

Full protection fiber small laser cutting machine SF1313G adopts Olsen Dicko numerical control system. It has perfect hardware, powerful CAM, excellent algorithm, flight cutting, mechanical accuracy compensation and other functions.



What materials can a  small fiber  laser cutter cut?

Brass
Carbon Steel
Stainless Steel
Small laser cutting machine SF1313G is able to cut up to 20 mm mild steel, up to 12mm stainless steel, and 8 mm brass. Please send us inquiry with your detailed requirements, and sales manager will get back to you with all the information you need and also the price. We are looking for agents and customers all over the world.
