CNC Press Break Machine

CNC Bending Machine - BDE10032

SENFENG BDE series can help to achieve simple and safe operations in the sheet metal bending process. The electro-hydraulic hybrid CNC bending machine will quickly meet your production requirements with higher accuracy and faster response speed.

Technical Parameter

ModelBDE10032
Maximum bending force1000KN
Bending length(A)3200mm
Width Between Columns (B)2600mm
Throat depth(E)400mm
Open Height(D)480mm
Speed of Slide BlocksApproach: 180mm/s
Bend: 0-10mm/s
Return speed: 160mm/s
Main motor power7.5kW
Dimensions(L*W*H)3700*1930*2630 mm
Machine Weight (kg)6600KG
Bending thickness   (Note: calculated by bending length of 3000mm)≤ 3 mm carbon steel     ≤ 2mm stainless steel     ≤4.5mm aluminum

Highlights of SENFENG BDE Series​​​​​​​

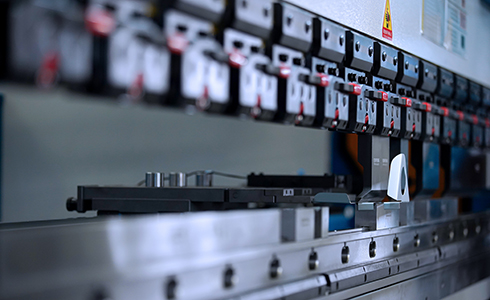

Column spacing (B)

The most suitable column spacing is critical to ensure the best performance, efficiency and precision of your CNC press brake. In order to optimize the bending strength and bending accuracy, SENFENG R&D team designed the most suitable side rack spacing for different models.

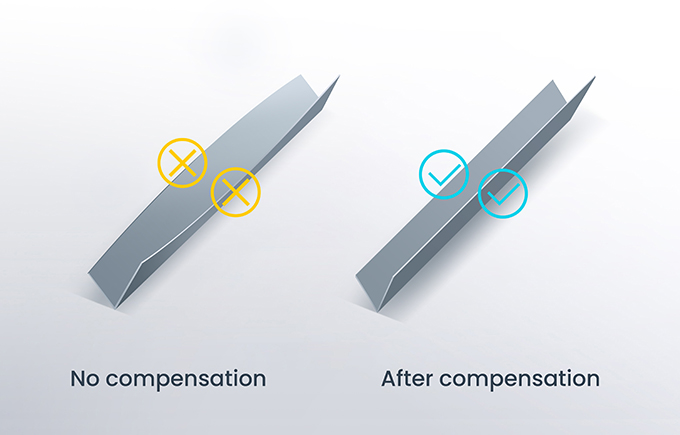

Mechanical crowning (V-axis)
Mechanical crowning can calculate the required compensation amount for the upper and lower beams based on the load force during workpiece bending, effectively compensating for the deflection deformation to improve bending accuracy.

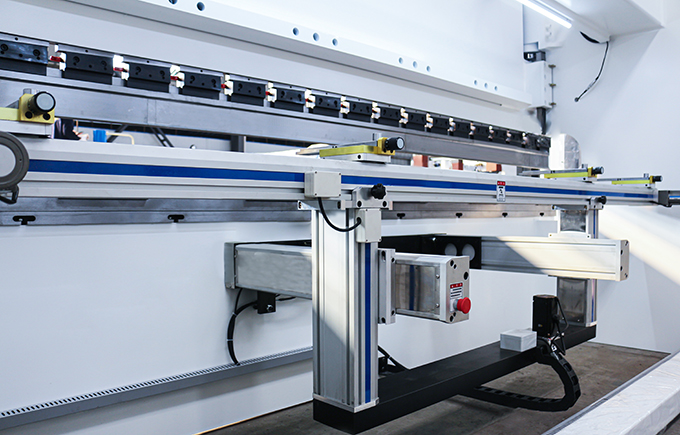

4 Back gauge fingers

SENFENG unique design of 4 rear fingers is more convenient and flexible, effectively reducing unnecessary manual operations. It can help to position the workpiece in the right site to ensure the high precision and consistency of the bending angle and bending position.

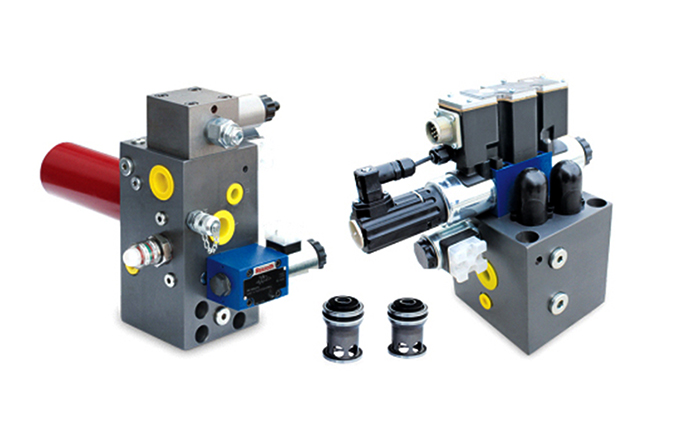

German REXROTH hydraulic system

German REXROTH hydraulic system has a high-frequency response (12ms), which is easy to debug. It is designed to provide precise and efficient control of hydraulic power, ensuring smooth and accurate operation of machinery and equipment.

Different CNC axis correspond to different CNC systems

According to your different bending processing needs, SENFENG can customize different CNC axis and corresponding CNC system to achieve more accurate bending.

4+V axis CNC bending machine can control four primary axis (X, Y1, Y2, and R) and an additional axis (V, crowning by CNC) to accurately bend and position the workpiece. At the same time,6+V/8+V axis are optional.
Standard DELEM-DA53T system, ESA / CYB system are optional.
DSP laser safety protection device (Optional)

The DSP laser safety protection device fully protects the personal safety of the bending machine operator and avoids the danger caused by the rapid movement of the slider on the machine tool.

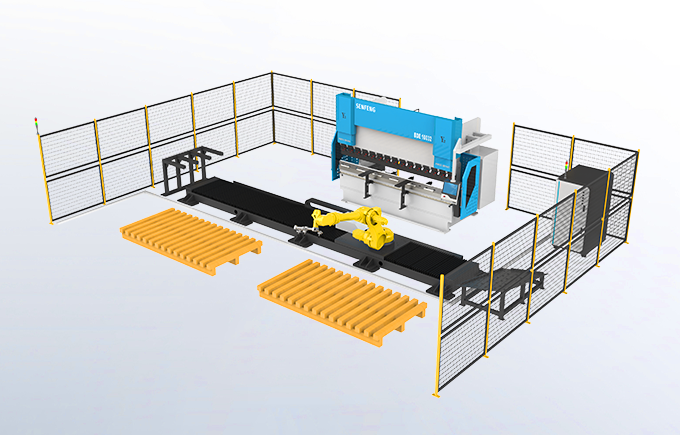

Robotic feeding cell (Optional)

SENFENG CNC Bending Machine can also be used with robots to realize automatic feeding, which greatly reduces the dependence on labor and improves product consistency and production efficiency.

Bending Material

CNC bending machine can be used to bend stainless steel, carbon steel,galvanized sheet,
fluoraluminum zinc sheet, copper, aluminum

Sheet Metal Cabinet Bending

Stainless Steel Bending

Sheet Metal Cabinet Bending

Carbon Steel Bending

Sheet Metal Cabinet Bending

Fluoro-aluminum-zinc Sheet Bending

Sheet Metal Cabinet Bending

Aluminum Bending

Sheet Metal Cabinet Bending

Sheet Metal Cabinet Bending
