Laser Cladding Machine

What is metal laser cladding machine?

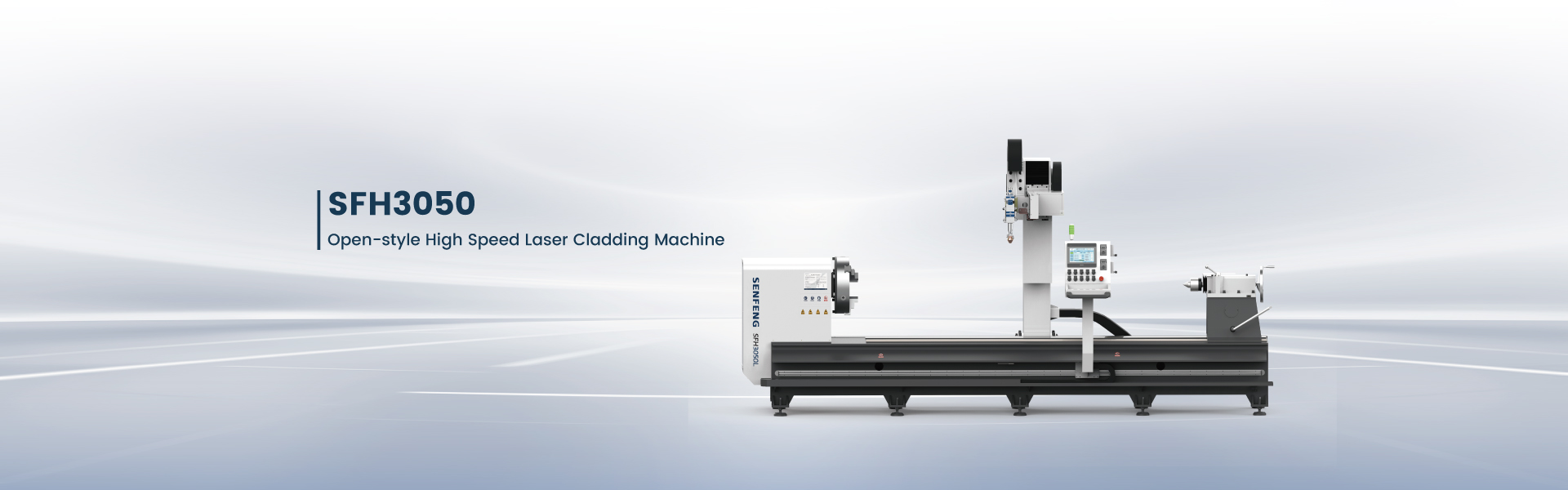

Laser cladding machine SFH3050 is a high speed laser remanufacturing equipment independently developed by senfeng laser. The machine can meet the coating manufacturing and quick repair application requirements of shaft parts of various specifications, and has the characteristics of high efficiency, low cost, and environmental protection. The machine is mainly composed of base, rotating spindle head, tailstock, column, beam, laser source, powder feeder, high speed cladding head, and control system. Independently researched and developed high-power fiber laser source equipped with high-speed laser cladding head and high-speed laser cladding nozzle, which can achieve high-efficiency and high-precision cladding processing of workpieces.

 For more details or price of metal laser cladding machine, just send e-mail to us.

FOLLOW US



Technical Parameters of metal laser cladding machine


Model SFH3050

 Laser source power

1.5kw/2kw/3kw/4kw/6kw

Powder feeder

Double barrel pneumatic powder feeding

Cladding head

High-speed ring nozzle + powder divider

Thickness of single layer

0.1-1.5mm

Deposition efficiency

0.3-1.0㎡/h

Substrate dilution rate

<5%-10%

Powder cathment efficiency

>80%

Powder utilization

>90%



Control System

KND

Driving system

KND

Effective itinerary

(customizable)



X

500mm

Y

3000mm

Z

500mm

C

360°continuous rotation



Headstock

(customizable)



Chuck diameter

φ500mm(three-jaw self-centering)

Chuck clamping range

Φ25-φ500mm

Maximum turning diameter of workpiece

Φ800mm

Maximum length of  workpiece

3m

Maximum load

3t

Spindle speed

200r/min

Adjustable angle of cladding head A axis (manual)

±30°

Powder collection device

Follow-up powder receiving tray

Power supply voltage

AC380V/50Hz

Total Weight

6.5t


Laser cladding vs other processing methods




Laser cladding

Spraying

Galvanizing

Overlaying welding

Coating layer thickness

0.1-10mm

0.1-5mm

0.1-100μm

0.1-several mm

Workpiece deformation

Small Small Small Big

Bonding form with substrate

Metallurgical bonding

Metallurgical bonding

Mechanical bonding

Metallurgical bonding

Bonding strength

High

Relatively low

Low

High

Coating layer hardness

Controllable

Controllable

High

Controllable

What are industrial applications?

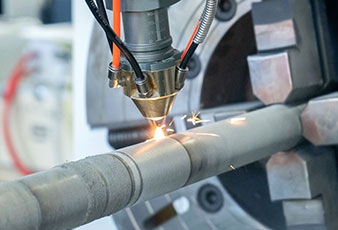

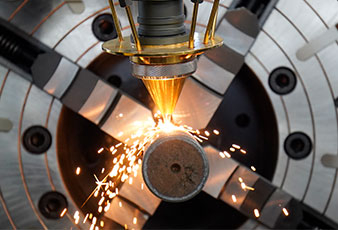

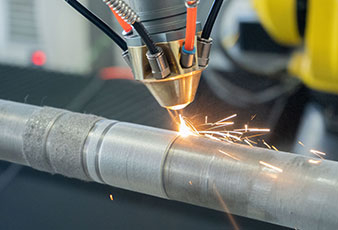

Metal additive machine is mainly suitable for surface modification of materials, surface repair of products and prototype manufacturing. It is widely used in coal, metallurgy, offshore platform, papermaking, domestic household appliances, automobile, ship, petroleum and other industries.
