Automatic Wide Belt Sheet Metal Sander



SF1000SSD automatic sheet metal deburring machine mainly includes control system, power system, conveying system, lifting system, and grinding system. The power system provides machine power. According to the length and thickness of the work-piece, the corresponding number is input by the control system, the lifting system adjusts the height of the platform, and the conveying system sends the work-piece to the grinding system to complete the grinding process of the work-piece.

For more details about sheet metal sander, just send e-mail to us.



Technical Parameter of Sheet Metal Sander





           Model

SF1000SSD

Working width(mm)

0-1000

Processing thickness(mm)

2-100

Processing length(mm)

≥20

Abrasive belt motor(kw)

18.5*2

Belt speed(m/min)

1100

Belt size(mm)

1000×2200

Automatic feeding system motor(kw)

4

Conveyor belt adjustable speed(m/min)

0-20

Lifting system motor(kw)

1.1

Brush roller motor(kw)

2.2*2

Working pressure(MPa)

0.4-0.7MPa

Control method

Touch screen+PLC

Adjustment accuracy(mm)

0.02

Weight(kg)

3800



Features of Sheet Metal Deburring Machine

​​​​​​​​​​​​​​
9

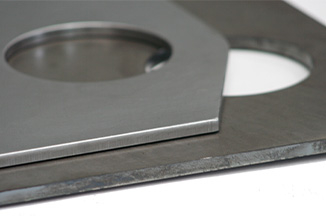

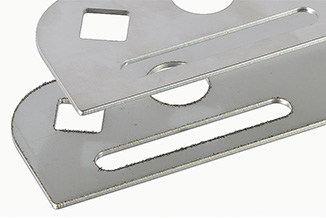

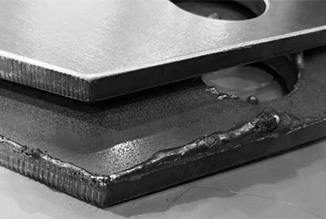

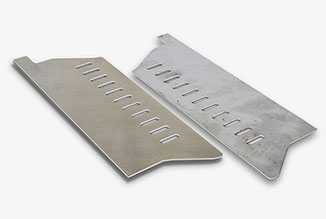

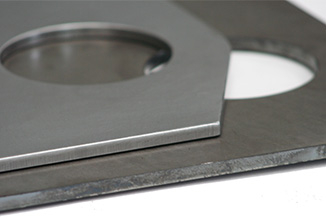

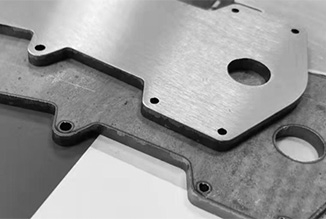

Removal of burrs, edge rounding, only remove burrs, retain the oxide layer, and do not change the thickness of the product.

11

PLC full computer touch screen control, simple operation,failure alarm device, low failure rate, basically no need for after-sales.

12

The cost of wearing parts is low and can be ignored.

13

Two 18.5kw main motors, safe and reliable,thicker plate parts, with a dead weight of 3.9 tons, strong and durable.

Application Industry of Sheet Metal Sander

Automatic Wide Belt Sheet Metal Sander wild uesd in sheet metal processing, aviation, aerospace, electronics, subway accessories, automobiles, food machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, metal decoration, advertising etc.
