Metal Sheet And Tube Fiber Laser Cutter
For more videos about  steel sheet & tube laser cutter ,just click the button.

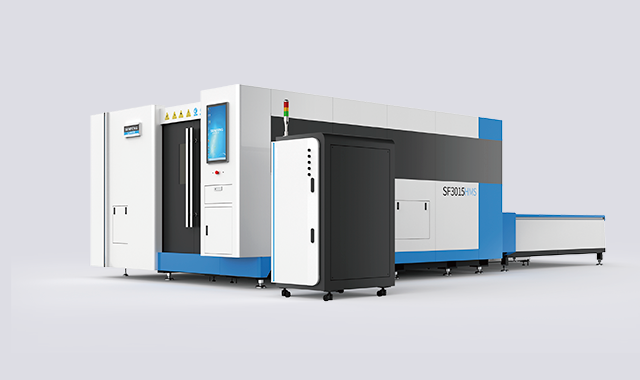

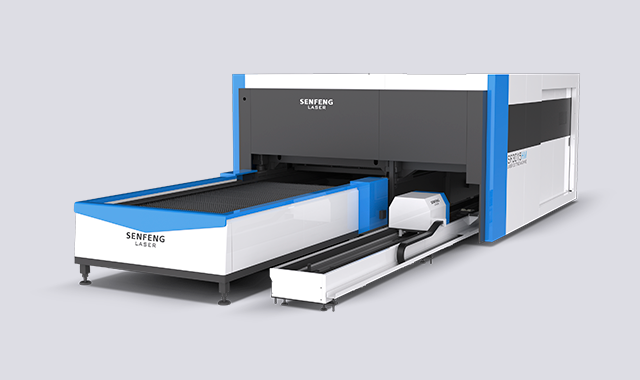

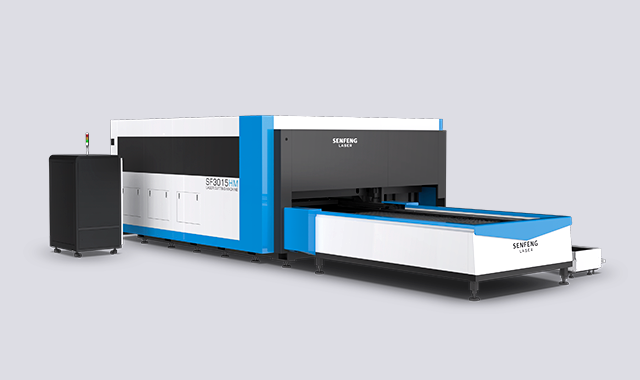

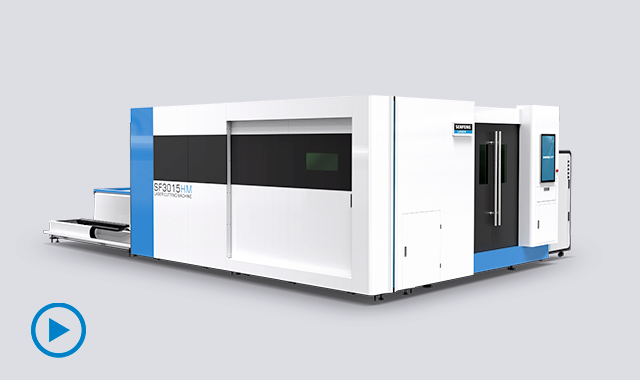

Full protection steel sheet and tube laser cutter

Full protection steel sheet and tube laser cutter SF3015HM specialize in cutting metal plates&tube, cost-saving. Considering the processing and budget requirements, the pipe cutting length can be selected with 3 or 6 meters , and the software can choose Cyptube and tubepro.
For more details or fiber laser cutter price, just send e-mail to us.

FOLLOW US


Technical Parameters of metal sheet and tube fiber laser cutter

               Model                       SF3015HM/SF4020HM/SF6020HM/SF6025HM/SF8025HM
metal sheet and tube fiber laser cutter

Working Area(mm)
3000 * 1500/4000* 2000 /
6000* 2000/
6000* 2500/8000* 2500
Working Area(in)

118*59/157*79/236*79/ 236*98/315*98

X-axis Travel 1500mm/2000mm/2500mm
Y -axis Travel  3000mm/4000mm/6000mm/8000mm
Laser Power 1.5kw/2kw/3kw/4kw/6kw/8kw/12kw/30kw/36kw
Maximum Speed 130m/min
X/Y Axis positioning accuracy ±0.05mm/m
X/Y Axis repeated positioning accuracy ± 0.02mm


What are the main features of fiber laser cutter?


Plate Welding Bed

High temperature annealing  to reduce internal stress and deformation.
The machine bed use thickened carbon steel plate, it can match graphite anti- burn technology, fully suitable for high power thick plate cutting.

Autofocus Laser Head

Suitable for various focal lengths, the focus will be adjusted automatically during the cutting process, which can achieve the best cutting effect of different thickness of metal
pipe.Laser head actively avoids obstacles,greatly reducing the probability of the laser head hitting the board.

Graphite Anti-burning

The fiber laser machine will be equipped with graphite anti-bruning (≥8000W)and copper plate(Optional) protection,insuring the machine bed and
working table not be our of shape and burned-out.

Pneumatic Chuck Clamping

Flexible and adjustable, improve efficiency. Suitable for various shapes of tube. Optional 3m or 6m tube cutting.

Automatic Nesting Software

1.Automatic tracking, automatic tracing-edge, double efficiency, smooth surface.
2.Computer programming, save production and labor costs.

Stable Beam

1.The cast aluminum gantry is designed to absorb high axial loads and acceleration forces.
2.The beam hardness can reach to T6.
3.Anti-corrosion, anti-oxidation, high ductility.
4.More lighter, more flexible.

We have 100+ R&D team will guarantee your machine quality,we have international engineer to service you all over the world,any question about laser machine,
free to contact SENFENG, we looking for your contact all time.
    Innovation is the calling card of the future. Follow me, look at the self-developed laser head and laser device.
    laser headfiber laser deviceFENG CLOUD

Metal laser cutting machine application & capability

Applied industries: rail transit, automobile, machinery, electrical manufacturing, elevator manufacturing, household appliances, kitchen and sanitary ware, advertising, and other machinery manufacturing and processing industries.
Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy.



Carbon Steel

Metal Tube

Any question about metal laser cutting machine,tube laser cutter,just  telling us your detailed requirements, Sales manager will send you more details and quote you the fiber laser cutting machine price.we are looking for agents and customers all over the world.
