Handheld Laser Welding Machine Video
More videos about senfeng fiber laser welding machine ,go to Youtube.

Handheld fiber laser cutting machine

What is the fiber laser welding machine?

Fiber Laser Welding is a welding technology used to join several metal components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into one spot. This concentrated heat source enables fine, deep welding and high welding speed.

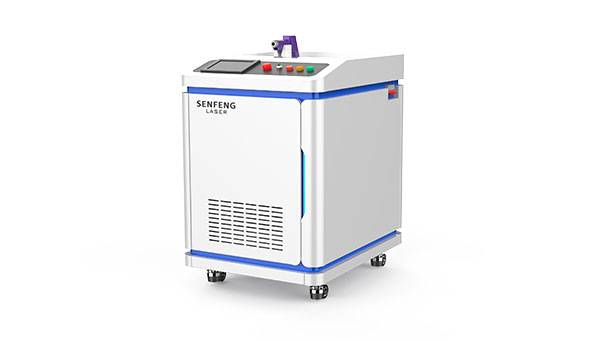

Senfeng handheld fiber laser welding machine  is used to weld metal plates and metal tubes.
For more details about handheld fiber laser welder machine, just send e-mail to senfeng.

FOLLOW US

Technical Parameter of senfeng fiber laser welder

As the laser welding equipment manufacturer,senfeng supply 1kw/1000w 1.5kw/1500w 2kw/2000w fiber laser welding machine for sale
               Model                        handheld laser welding machine
Laser Power
1KW/1.5KW/2KW
Laser Wave Length
1080nm

Welding Speed
0-120mm/s

Welding Gap
≤1/5 of the thickness of sheet metal

Welding range 0.5~5mm carbon steel,0.5~5mm stainless steel,0.5~4mm aluminium alloy
Fiber Length
Standard 10m

Cooling Mode
Water cooling

Electromechanical
380V/50HZ  220V optional



6 Main Features of Senfeng laser welder machine

Welding Thickness

1. 1000w/1kw handheld laser welder can weld 0.5-3mm steel;
2. 1500w/1.5kw fiber laser welder is used to weld 0.5-4mm steel;
3. 2000w/2kw laser welder can weld 0.5-5mm steel,0.5-4mm aluminum.
The above data is based on the triangular light spot.
Due to the difference of the plate and labor, please refer to the
 actual welding.

Laser welding vs Argon arc welding

​​​​​​​
​​​​​​​
Comparison item Laser welding Argon arc welding
Welding method

Spot welding or continuous Spot welding
Applicable materials

Stainless steel, carbon steel, galvanized sheet,aluminum, etc. Stainless steel, carbon steel, galvanized sheet
Thickness requirements

0.5—4mm 1—12mm
Workpiece deformation/undercut

Small Big
Welding speed

0—8m/min 0—1m/min
Subsequent processing

Light or no sanding Need polishing
Operation difficulty

Simple Complex
Safety and environmental protection

Relatively safe and environmentally friendly Not safe and environmentally friendly
Labor costs

General workers (can operate after simple training) Professional welder
Wearing parts

Lens, nozzle Argon
Supplies

Argon/Nitrogen Argon


How does a senfeng laser welding machine work?

Hand-held laser head is light and effortless. It can weld any part of the workpiece, and has various welding methods such as butt welding, stack welding, tailored welding. More information about using the laser welding machine,go to read this Precautions for Laser Welding

Vertical Welding

Parallel Welding

Stitch Welding

What is a industrial laser welding machine used for ?

Laser welding machine can be used in welding stainless steel, aluminum, copper,  chromium, nickel, titanium and other metals or alloys

Fiber laser welding machine is widely used in the IT industry, medical equipment, communications equipment, aerospace, machinery manufacturing, battery manufacturing, elevator manufacturing, craft gifts, household appliances manufacturing, tooling, gears, automobile shipbuilding, and other industries.

How much does a fiber laser welding machine cost

($9.5k to $16k)The cost of handheld fiber laser welder machines varies greatly in accrodance with different laser power. A new fiber laser welder can cost from $9.5k to $16k, identify your needs and get an instant quote for SENFENG fiber laser welder machine now.
