Robotic Laser Cladding Systems

What is robotic laser cladding systems?

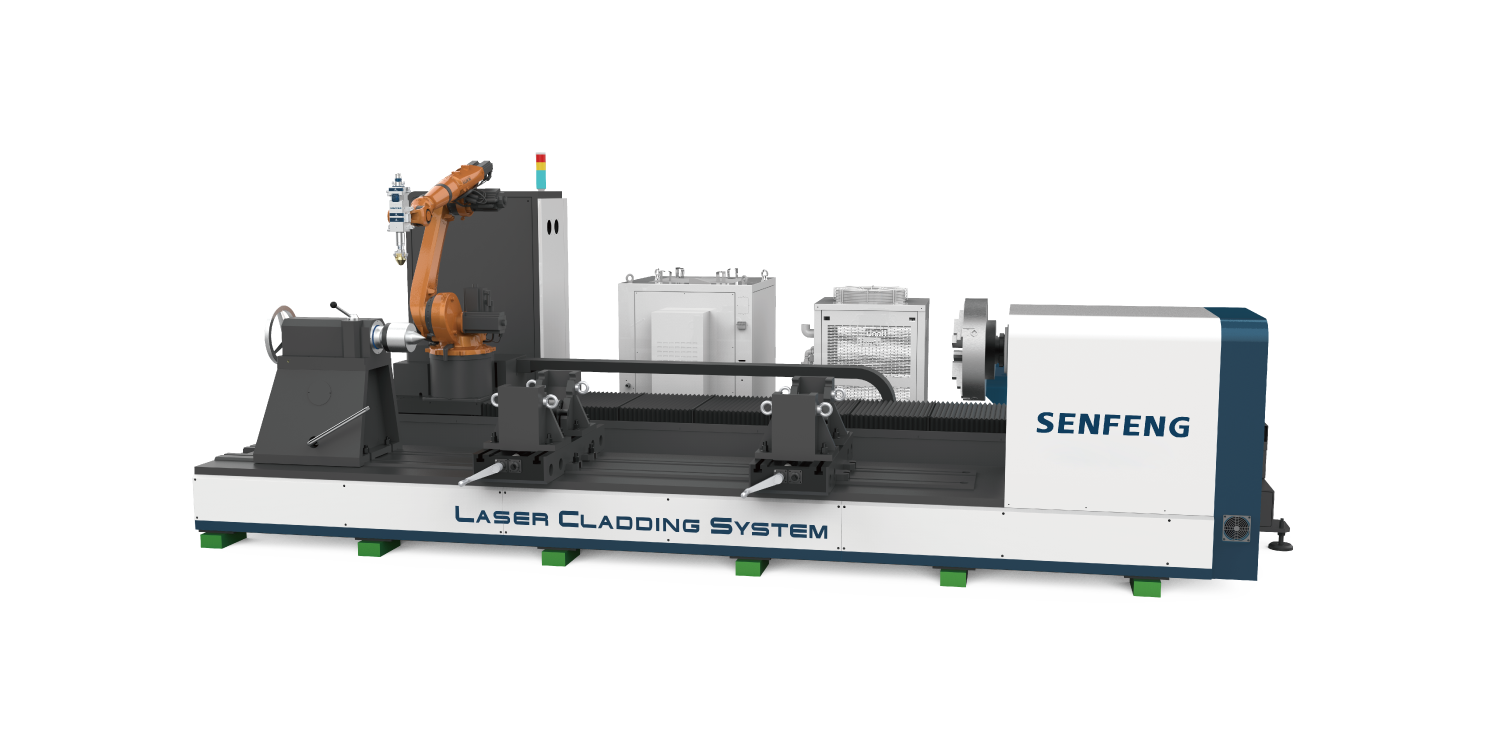

The robot cladding machine is a large-scale laser remanufacturing equipment independently developed by senefng laser based on industrial six-axis robots. The equipment is mainly composed of six-axis industrial robot, rollover tooling, biaxial positioner, robot walking axis, workbench, laser, powder feeder, cladding and human-machine interface control system.

The robot cladding machine has complete functions, diverse performances and strong versatility. It can realize the cladding of shaft surface, curved surface and special-shaped parts. It is simple to operate and easy to maintain.

For more details or price of robot cladding machine, just send e-mail to us.

FOLLOW US


Technical Parameters of Robotic Laser Cladding Systems


Model

SFR5050

Laser Power

1-20kw

Fiber core diameter

600μm

Robot



Model

HH020

 Wingspan

1742mm

Load capacity

20kg

Repeat positioning accuracy

±0.06mm

Robot Walking Axis Stroke

4000mm

Horizontal Rotary Table

Maximum load capacity(Have a roller)

10 T

Maximum workpiece diameter

1200mm

Maximum weight of clamping workpiece(Without the roller)

3 T

Spindle speed

150 RPM

Maximum length of workpiece

5000mm

Biaxial positioner

Load capacity

500kg

Maximum Speed of A-axis

24 RPM

Maximum Speed of B-axis

37 RPM

Variable Position Angle(Relative vertical direction)

≤±120°

Four-jaw independent chuck

Φ500mm

Powder feeder

Double barrel pneumatic powder feed

Cladding head

Three-point nozzle + powder divider, shaping module, linear nozzle + powder divider

Advantage of robot laser cladding machine

Strong Versatility



The robot cladding workstation is not only suitable for laser cladding processing of simple surfaces such as shafts and planes, but also for processing complex surfaces such as balls and curved surfaces.




High Precision and Stability

 The powder feeder uses servo motors instead of stepping motors, mass flow meters instead of float flow meters, and CNC processing powder discs. Therefore, the conveying accuracy and stability of the cladding machine is much higher than that of the same type of products.

High Degree of Automation



 The whole processing process adopts computer control. The function of robot is highly integrated and the application system can be switched directly.

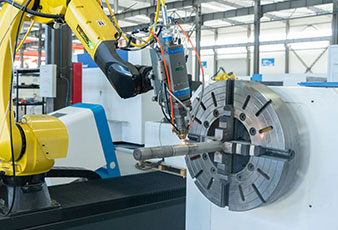

Dual-Axis Servo Positioner

The dual-axis servo positioner is independently designed by senfeng, which can realize the efficient cladding of complex curved surfaces and parts.

 Its variable position angle is ≤±120°

Horizontal Rotary Table

The horizontal rotary table can complete the high-speed cladding of shaft parts, which is mainly composed of bed platform, headstock, tailstock thimble, etc.

 The bed platform and headstock are made of high-strength cast iron, which has high rigidity and shock absorption.

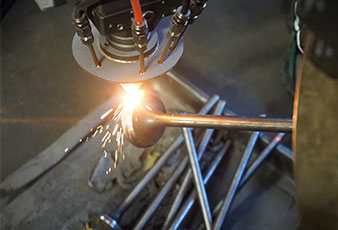

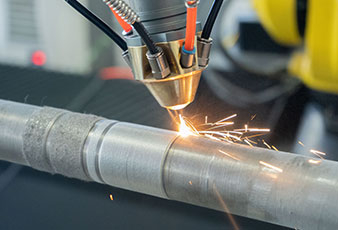

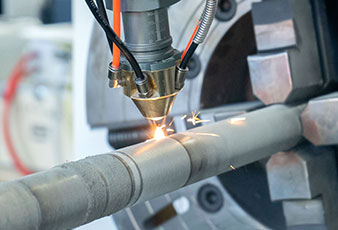

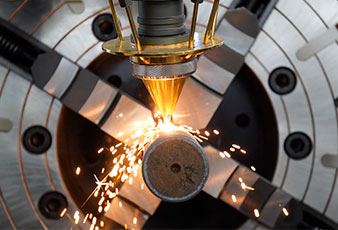

SAMPLE




The robot cladding workstation is mainly suitable for surface modification of materials, surface repair of products and prototype manufacturing.

It is widely used in coal, metallurgy, offshore platform, papermaking, domestic household appliances, automobile, ship, petroleum and other industries.
