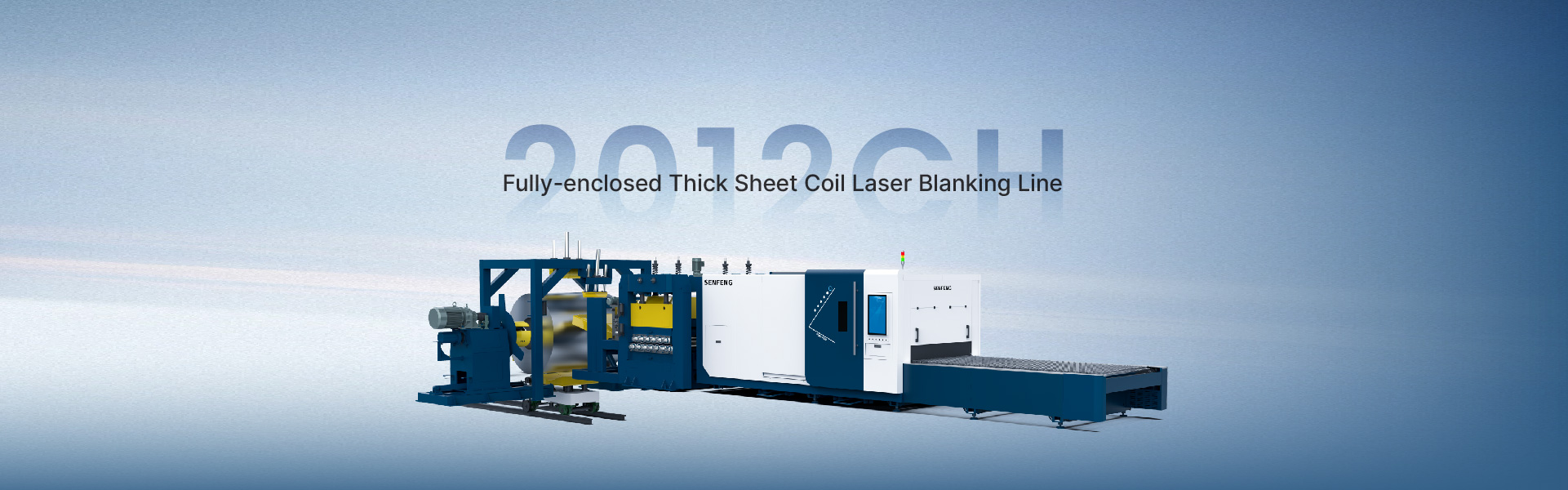

2012CH-Heavy-load Coil Laser Cutting Machine

Integrated coil fed laser cutting system

SF2012CH is a highly integrated coil fed laser cutting system, consisting decoiler, blanking machine, laser cutting machine and automatic stacking device. Senfeng has pushed the thickness limit of coil to 14mm, which is the first to apply this exclusive technology to practical production and make coil fed for medium metal possible. It’s a flexible coil-fed production line which can be tailor-made to match specific material requirements. Laser blanking line offers many advantages thanks to its use of a coil, such as savings on raw material, consistent work rates and a lower cost on labor.
For more details or integrated coil fed laser cutting system price, just send e-mail to us.

Technical Parameters of Integrated Coil Fed Laser Cutter

Model	SF2014CH
Coiled Material Thickness (mm)	8-14
Size of Sheet Coil (L*W, mm)	4000*2000
Standard inner diameter of sheet coil (mm)	Φ610/Φ762
Max outer diameter of sheet coil (mm)	Φ1000-1800
Weight of Sheet Coil (T)	20
Max Feeding Speed (m/min)	10
Leveling Accuracy (mm/m²)	±5
Laser Power (kW)	6

Advantages of Integrated Coil Fed Laser Cutting System

Double-sided decoiler: the maximum loading capacity of double-sided decoiler can reach to 30T. One loading can be processed for longer time, save time and labor on frequent loading.

Adopting powerful blanking machine with 11 rollers, it can straighten the coil as well as release the tension inside, to ensure the accuracy in the following cutting process.

Flexible production line allows day long unmanned mass production, with simultaneous part stacking.

Application Materials Of Integrated Coil Fed Laser Cutter

Medium thick coil laser cutting system, with highly flexible integration, is widely used in various industries including Sheet metal processing, machinery

manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing,

petroleum machinery, food machinery, decoration advertising and so on.
