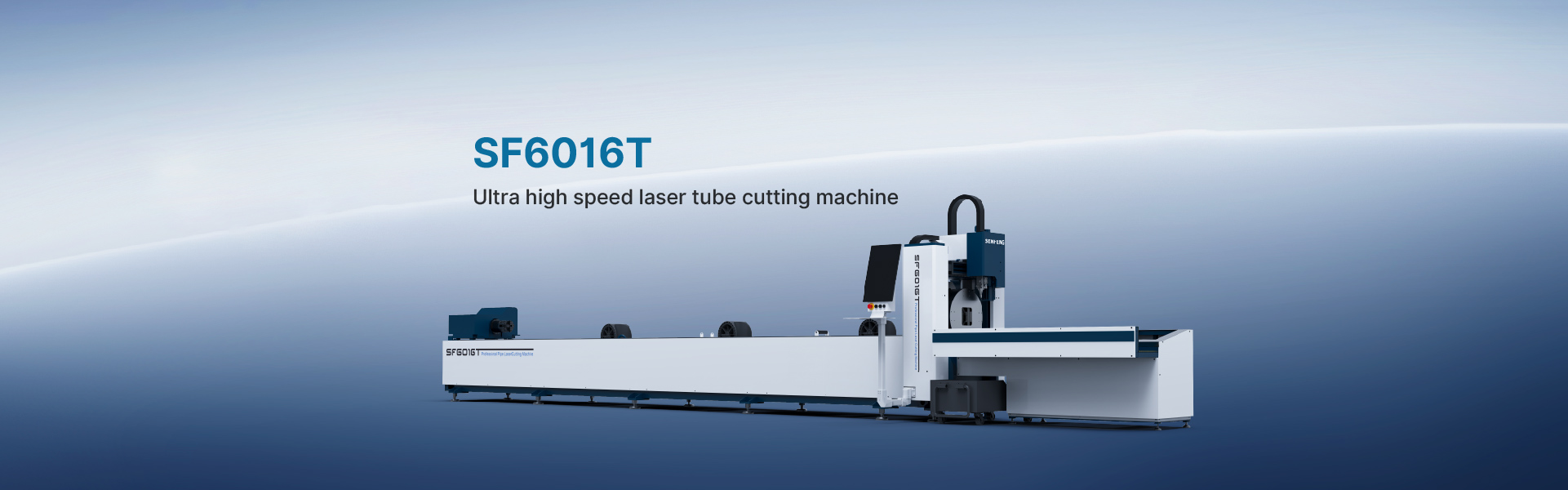

Metal tube fiber laser cutting machine

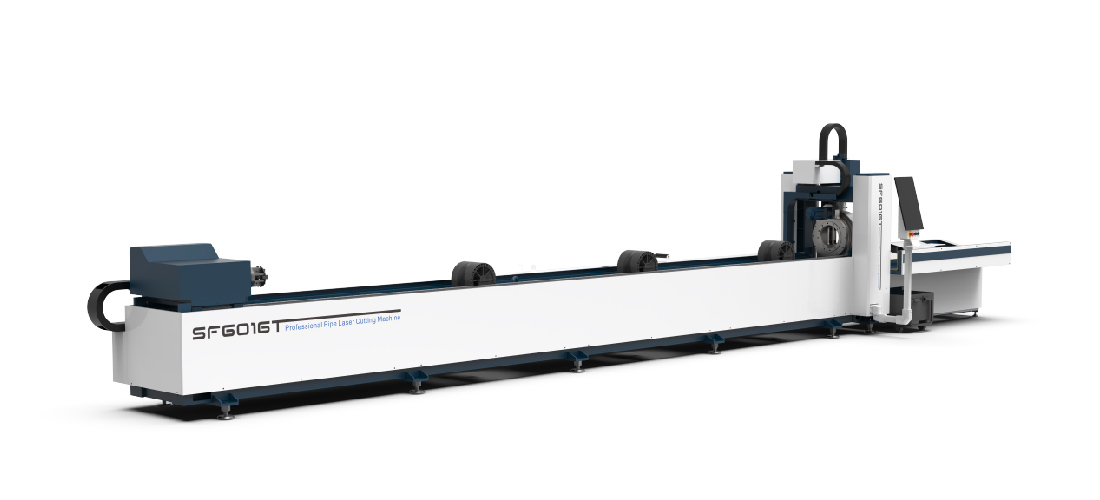

SF6016T metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ10~160mm (square tube: 10*10-110*110mm).
SF6016T metal tube laser cutting machine is equipped with fiber laser device,  laser power  from 1kw to 3kw.Besides, the machine has a smaller footprint, the size is 9m*2.2m*2.2m.

For more details or metal tube fiber laser cutting machine  price, just send e-mail to us.



Technical parameters of  metal tube laser cutter



         Model

   SF6016T

 Pipe processing range(mm)

Automatic loading:6000* φ10~160
Manual loading
: 7100* φ10~160
(Square tube: 10*10~110*110)

 Laser Power(kw)

 1.5/2/3

Maximum Speed(m/min)

  120

 Positioning Accuracy(mm)

   ±0.05

 Repeated Positioning Accuracy(mm)

   ±0.02

 Maximum Rotational Speed(r/min)

  120

 Maximum acceleration(G)

   1.2



What is the thickness can a metal tube laser cutting machine cut ?



Material

1.5kw 2kw 3kw

Carbon steel(mm)

1-10

1-10

1-16

Stainless steel(mm)

1-6

1-6

1-8

Aluminum (mm)

---

 1-4

1-6

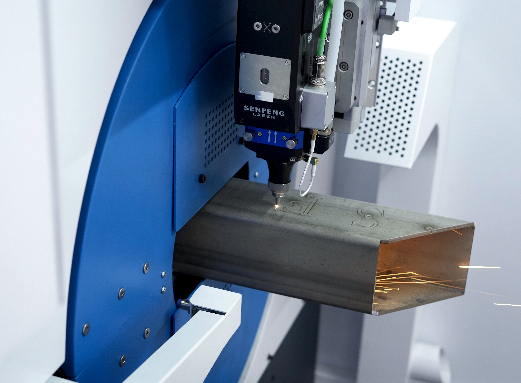

What are the advantages of metal tube laser cutting machine?

​​​​​​​​​​​​​​
PJJJ6EK-LRLXFLY6-H40J0
  • 01
    “0” Tail Material
    Ultra-short tailings, saving the cost of raw materials,the minimum tail length is 20mm, which truly realizes 0 tail cutting.
  • 02
    Ultra-fast Tube Cutting
    Ultra-fast tube cutting process, the chuck speed can reach 125r/min; the running speed can reach 120m/min; the motion acceleration has reached 1.2G.
  • 03
    High processing accuracy and good cutting quality
    High processing accuracy, good cutting quality, the positioning accuracy ±0.05mm;repeated positioning accuracy ±0.02mm;machining accuracy is 0.1mm.

Main features of senfeng fiber laser tube cutting machine

“0” Tail Material

The minimum tail length is 20mm, which truly realizes 0 tail cutting, reduces the cost of raw materials,
and brings great production benefits



Double Chuck Clamping

Clamping round tube φ10~φ160mm. Servo motor and reducer are driven synchronously to ensure processing accuracy.
Both front and rear chucks are pneumatically tightened.

Professional Tube Cutting Software


Automatic tracing-centre, eccentricity compensation, ensure cutting accuracy.
Corner cutting technical, no overburn, high cross-section quality.

Automatic Loading and Unloading System(optional)

It can be equipped with automatic loading and unloading system, 6 meters of pipe bundles, intelligent sorting, efficient feeding,
high degree of automation, saving labor cost and improving working efficiency.

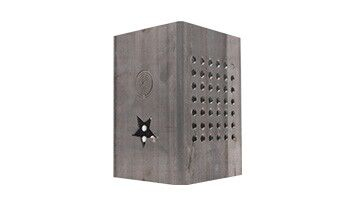

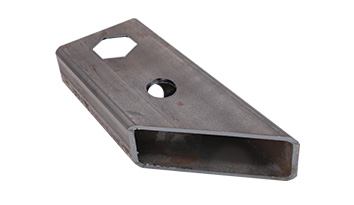

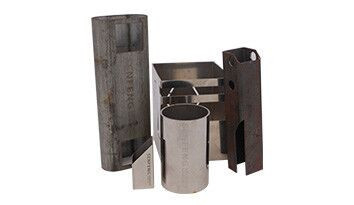

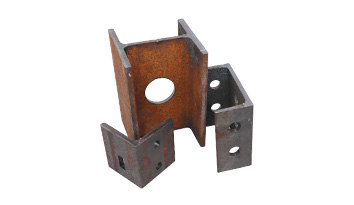

APPLICATION MATERIALS OF TUBE LASER CUTTER

SF6016T metal tube fiber laser cutting machine can cut  carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.widely used in furniture, medical equipment, fitness equipment, oil pipelines, exhibition equipment, engineering machinery, bus manufacturing, locomotive manufacturing, agricultural and forestry machinery, bridges, ships, structural parts, household appliances manufacturing and other industries.

MORE
PACK UP



Which metal tube laser cutting machine is suitable for you ?

 Model

SF6016T

SF6020T

SF6016T SF6020T

Pipe processing range

(Round tube:6000mm* φ10~160mm)

(Square tube: 10*10~110*110mm)

(Round tube:6000mm* φ10~220mm)
(Square tube: 10*10~150*150mm)

Laser Power

1KW/ 1.5KW/2KW/3KW

1.5KW/2KW/3KW/4KW

Maximum Speed

120m/min

100m/min

Maximum Rotational Speed

120r/min

100r/min

Positioning Accuracy

±0.03mm

±0.05mm

Repeated Positioning Accuracy

±0.03mm

±0.02mm

CNC control system

RayTools/FSCUT3000S

RayTools/FSCUT3000S

Servo motor

Germany lead motion

Germany lead motion

Chuck brand

SENFENG

SENFENG

Chuck number

2

2

Maximum load bearing

100KG

150KG

Automatic Loading System

Optional

Optional

Automatic Unloading System

Optional Optional
If you don't get needed information about tube laser cutting machine , please feel free to contact us. Online Service will answer you right away.
