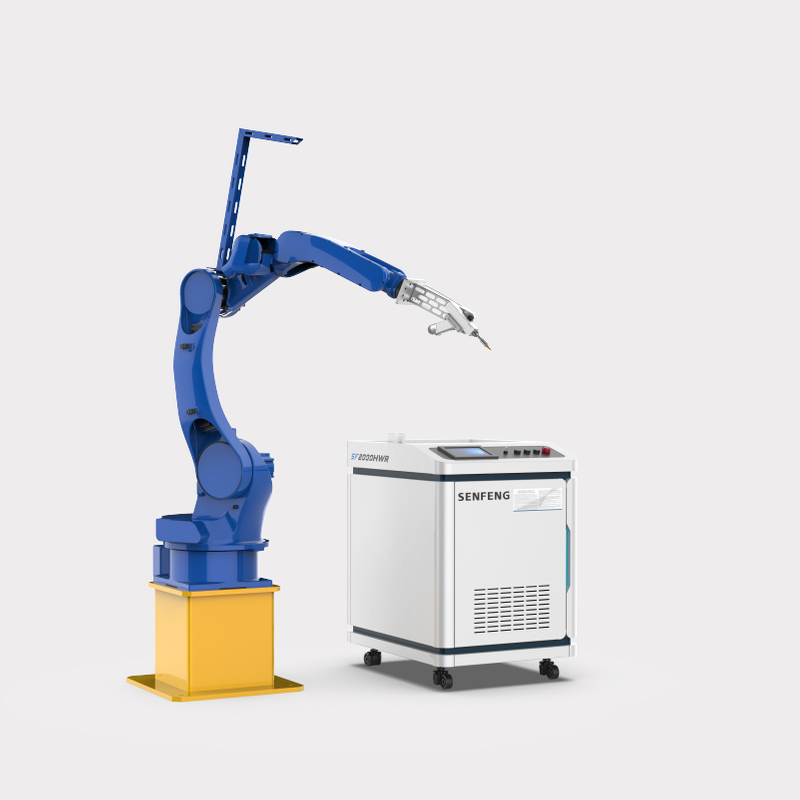

Robotic and Handheld Laser Welding Machine

Double function:handheld welding and robotic welding
Cost effective
High performance
Availability:
Quantity:

Robotic and handheld laser welding machine is a double function model which can realize both handheld welding and robotic welding, cost-effective and high performance.

robotic and handheld laser welding machine

Model

Robotic and handheld laser welder

Laser Power1.5kw/2kw

Robot

CRP-RH18-20

Welding Thickness0.5-4mm
Welding Head

Handheld, facula-adjustable

welding head


Swift switching in automatic and handheld operation

Handheld welding and robot welding can be switched quickly through customized fixtures and one-button switching control system, one machine for two use.


Various welding methods

Based on workpiece welding requirements, laser heat conduction welding, deep penetration welding and wire filling welding are available.


Welding at various angles

According to the workpiece welding positions, welding can be achieved at various angles within the processing range through the cable anti-winding mechanism of the robot, and the maximum coverage of the robot is 1730mm.


Automatic welding of various, large-scale workpieces

Welding parameters can be completely managed by the robot welding software package. Welding procedure can be determined based on the workpiece type. One-button start for automatic welding.

Robotic and handheld laser welding machines are mainly used to cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.


robotic laser welding machine

Robotic laser welding machine is widely used in the auto industry, electronics industry, food machinery, household appliances, and so on.


robotic laser welding machine
