Ultra large metal laser cutter

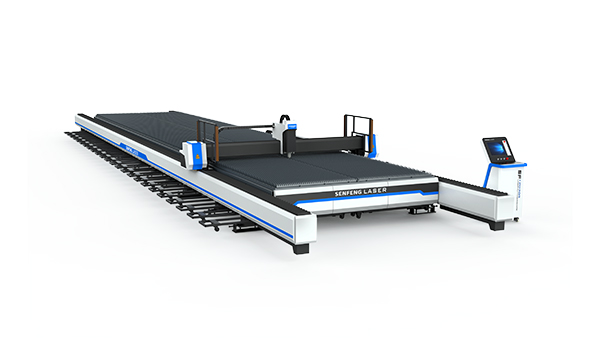

Ultra large metal laser cutter SF20040R is a machine with super large working table. The working area can reach 20000mm*4000mm. It is specially used for cutting metal sheet .
For more details about fiber laser cutter machine SF20040R, just send e-mail to us.

Technical Parameters of Sheet Metal Laser Cutting Machine

          Model                       SF6030R/SF12030R/SF20040R
sheet metal laser cutting machine
Working Area(mm)
6000*3000/12000 * 3000 /20000* 4000
Laser Power(kw) 812/15/20
Maximum Speed(m/min) 80
X/Y Axis positioning accuracy(mm) ± 0.1/10000
X/Y Axis repeated positioning accuracy(mm) ± 0.05


What is the Maximum Cutting Thickness ?


  8KW 12KW 15KW 20KW
Carbon Steel(mm) 0.4-30 0.4-50 0.4-50 0.4-70
Stainless Steel(mm) 0.4-30 0.4-50 0.4-50 0.4-70
Aluminum (mm) 0.4-30 0.4-50 0.4-50 0.4-60
Brass (mm) 0.4-16 0.4-20 0.4-20 0.4-30



Features of the Metal sheet Laser Cutting Machine

Machine Bed

Honeycomb carbon structure for stable performance and no distortion warranty for 20 years.

Stable Beam

Integral die-casting beam to ensure high precision, no deformation and long life.

Full Function CNC System

Original, ANCAmotion high speed CNC system was adopted by SF20040R optical fiber laser cutting machine.

CNCKAD Nesting Software

(1)Multiple parts import
(2)Fast Conversion and Batch File Processing
(3)Efficient automatic typesetting function
(4)Supporting co-edge cutting

Application & Capability of Metal Sheet Laser Cutter

Applied Materials
Widely used in cutting carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy and manganese alloy.
Application
Mainly used in rail transit, automobile,  agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, grain machinery, petroleum machinery, kitchen Sanitary ware, decorative advertising, laser processing services and other machinery manufacturing and processing lines.
20KW Cutting Range
Cutting range: 0.4-70mm carbon steel, 0.4-70mm stainless steel, 0.4-60mm aluminum alloy, 0.4-30mm brass.
Carbon Steel
Brass
Aluminum
Any questions about ultra large metal laser cutter SF20040R, just send us inquiry with your detailed requirements. We are looking for agents and customers all over the world.
