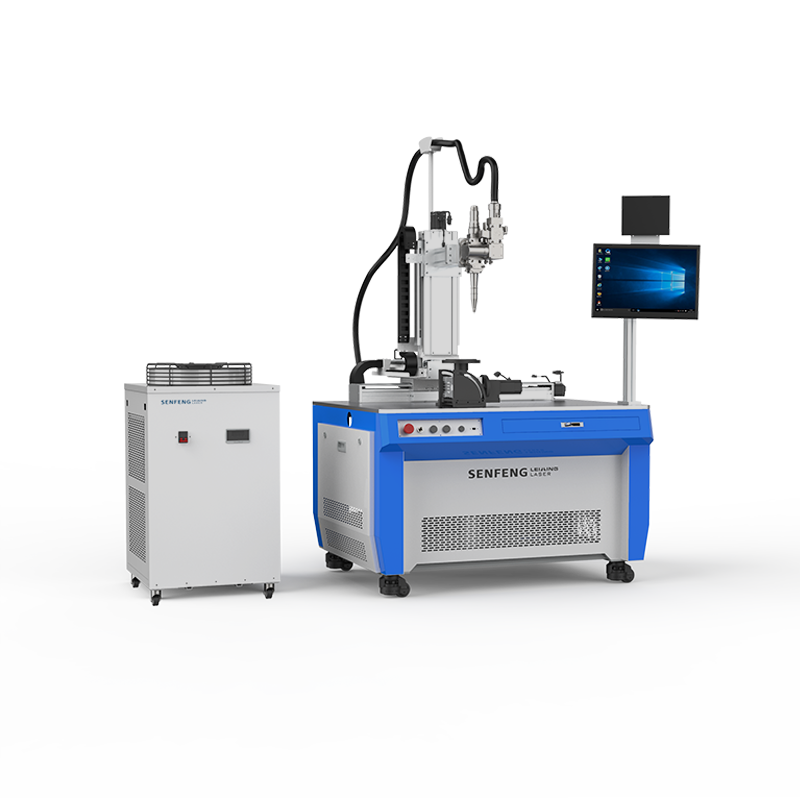

Name: Platform Fiber Laser Welding Machine SF2000PW
Rating: 5.0 (35 reviews)

Laser welding is a welding method that uses a focused laser beam as an energy source to bombard the weldment with the heat generated.
By controlling the laser power, swing width, frequency and other parameters, the workpiece is melted to form a specific molten pool.
The machine is equipped with a double-station rotation, which can be switched by putting the welding button to improve the processing efficiency and ensures work safety.

Platform Fiber Laser Welding Machine

Model	SF1500PW/SF2000PW/SF3000PW
Laser Power	1.5kW/2kW/3kW
Welding range	700300300mm
Welding seam	Fusion welding thickness is ≤ 15% of the plate thickness, and ≤0.3mm
Weld thickness	≤3mm/4mm/6mm
Cooling mode	Water Cooling
Outline size	12009502100mm
Range of working temperature	0-40℃

The heat input can be minimized, and the metallographic change of the heat affected zone is small. And the deformation caused by heat conduction is also the lowest.
The laser beam can be focused on a small area to weld small, closely spaced parts.
The machine can weld a wide range of materials, and can weld various dissimilar materials together.
It is easy to finish high-speed welding automatically, and it can also be controlled by digital or computer to increase multi-station rotation and improve work efficiency.
When welding thin sheet metal or thin wire stock, it has no melting back phenomenon like arc welding.
It can accurately weld the workpiece without the effect of magnetic fields (arc welding and electron beam welding are easier to be affected).

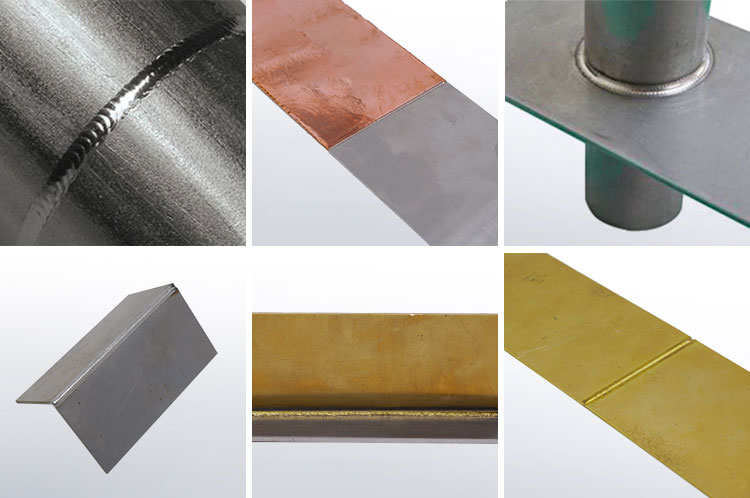

Platform fiber laser welding machine can be used to weld stainless steel, carbon steel, aluminum, chromium, nickel, titanium, and other metals.

Platform Fiber Laser Welding Machine

Platform fiber laser welder is widely used in the auto industry, electronics industry, food machinery, household appliances, and so on.

fiber laser welding machine

Platform Fiber Laser Welding Machine SF2000PW
