Comparison of 3kW, 4kW, And 6kW Laser Cutting Machines

Views: 536     Author: Site Editor     Publish Time: 2024-07-24      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

As for laser cutting, power rating of laser is regarded as a pivotal factor in assessing the machine's performance and efficiency. Laser cutting machines are commonly available in power ratings of 3kW, 4kW, 6kW, and even higher, such as 80kW in the case of SENFENG, each tailored to specific operational requirements and material thicknesses. This article aims to provide a comparative analysis of the three most popular power ratings to elucidate their individual strengths and applications.


1 (1)


I. Laser Power Rating


The laser power rating is a critical determinant of cutting speed, precision, and versatility in laser cutting machines. It directly influences the machine's capacity to work with various metal materials and thicknesses. A higher power rating typically translates to faster cutting speeds and enhanced capability to cut through thicker metals.


3kW: A 3kW laser cutter is well-suited for moderateindustrial applications, offering efficient cutting capabilities for materials like stainless steel, mild steel, aluminum alloy, brass, and red copper within a specific thickness range. The cutting speed is optimized for thinner materials, striking a balance between speed and power consumption.


4kW: Upgrading to a 4kW laser cutter significantly improves cutting capabilities. This power rating is ideal for thicker materials and provides a faster cutting speed compared to a 3kW machine. It enhances productivity and enables the processing of a broader range of materials across diverse industries.


6kW: Operating at a high power level, a 6kW laser cutting machine delivers impressive cutting speed. These machines excel in swiftly cutting through thick materials, making them highly efficient for heavy-duty industrial applications. They are particularly effective in processing thick metals and achieving high throughput.


1 (2)


II. Cutting Speed and Efficiency


The primary advantage of higher laser power lies in its impact on cutting speed. A 6kW laser cutter can cut metals much faster than a 3kW or 4kW machine, which is advantageous for high-volume production. For example, cutting 1-inch thick stainless steel with a 6kW machine can be significantly quicker than with a 3kW machine due to the increased power density.


1 (3)

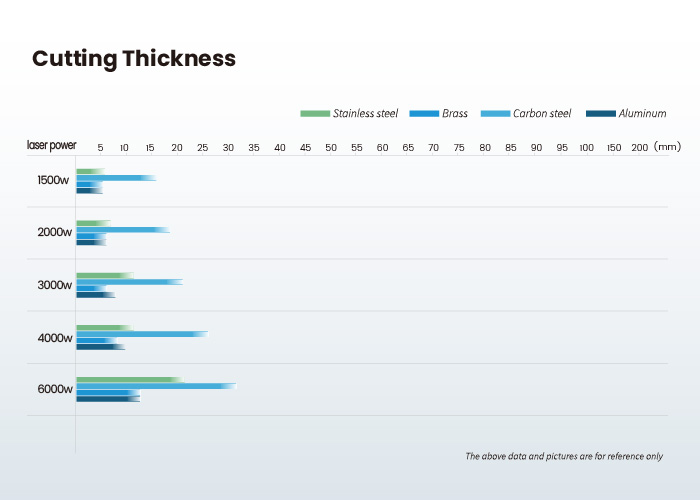

III. Thickness Range and Material Compatibility


When considering cutting capabilities:


3kW: Typically suitable for materials up to 0.83 inches (20mm) thick, depending on the material type. It excels with thinner materials and is commonly used in industries requiring high-precision cutting at a moderate speed.


4kW: Capable of cutting thicker materials up to 1.04 inches (25mm), depending on the material type. It expands the range of applications to include medium-thick materials while maintaining a good cutting speed.


6kW: Excels in cutting thick materials up to 1.25 inches (30mm), depending on the material type and quality. It is preferred for heavy-duty applications where speed and power are crucial.


1 (4)


IV. Energy Consumption and Operating Costs


Energy consumption increases with a higher laser power rating. A 6kW laser cutter will require more energy per hour compared to a 3kW machine, resulting in higher operating costs. However, this cost increase is often offset by the boost in productivity and efficiency gained from faster cutting speeds and the ability to work with thicker materials in fewer passes.


SENFENG's Cutting Ability of 3kW, 4kW and 6kW

Laser power

Max thickness of sheet

Max speed of cutting sheet

Max thickness of tube

Max speed of cutting tube

Total operating costs (O2)

3kW

20mm

30-45m/min

12mm

25-35m/min

18.2RMB/kWh

4kW

25mm

40-50m/min

12mm

25-35m/min

22.1RMB/kWh

6kW

30mm

45-55m/min

18mm

30-45m/min

24.6RMB/kWh


V. Precision and Edge Quality


While higher power lasers generally offer faster cutting speeds, they can also impact cutting precision and edge quality. Nevertheless, advancements in laser technology and cutting control systems have significantly addressed these concerns. Modern laser cutting machines, regardless of their power rating, can achieve high precision and excellent edge quality as long as they are properly maintained and operated.

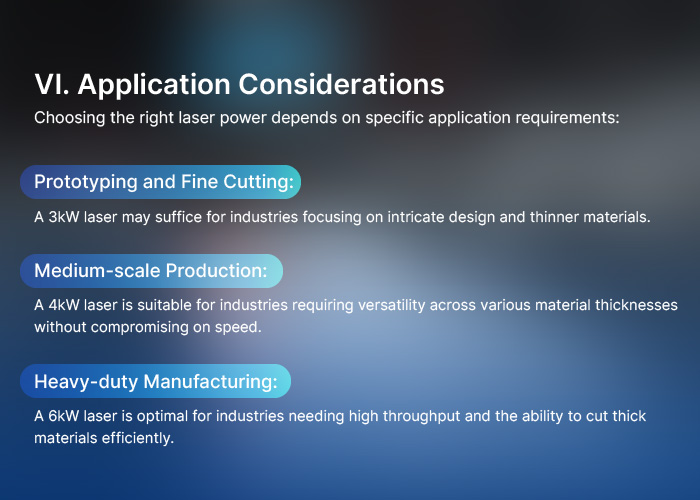

VI. Application Considerations


Selecting the appropriate laser power depends on the specific application requirements:

Prototyping and High-precision Cutting: A 3kW laser may suffice for industries focusing on intricate designs and thinner materials.

Medium-scale Production: A 4kW laser is suitable for industries requiring versatility across various material thicknesses without compromising on speed.

Heavy-duty Manufacturing: A 6kW laser is optimal for industries needing high throughput and the ability to cut thick materials.


1 (5)


VII. Conclusion


In summary, when choosing among a 3kW, 4kW and 6kW laser cutting machine, it is crucial to consider your specific work needs, metal thickness and production volume. A higher laser power provides faster cutting speeds and the capability to handle thicker materials, albeit at higher operational costs. Understanding these distinctions can guide you in making an informed decision based on your industry requirements and budget constraints. For a more detailed consultation on laser cutting capabilities, please reach out to our technical engineers, who can offer tailored advice based on your specific needs.


1 (6)


By analyzing the differences in cutting capabilities between these machines, you can better understand the impact of varying power levels on the quality of cuts, speed of production, and cost-effectiveness in industrial applications. This comparison can help businesses make informed decisions when selecting the most suitable laser cutting machine for their specific needs.
