What is High-speed High-precision Tube Laser Cutting Machine?

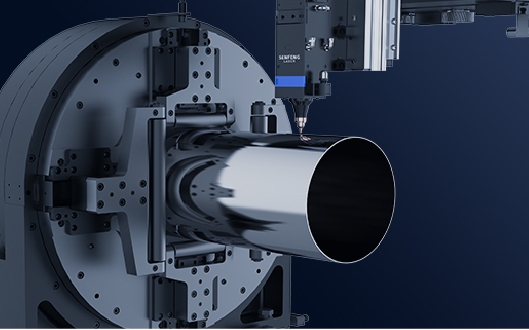

This is a professional tube laser cutter that performs noticeably well in cutting speed and precision. It comes with two pneumatic chucks, which allow cutting and loading to occur simultaneously, so as to minimize time waste and enable continuous cutting at high speed. Furthermore, its adoption of servo motors and precision guide rails offers repeatability accuracy of ±0.03mm. So, it is capable of performing high-speed, high-precision cutting on over a dozen types of tubes.
Technical Parameter
﹀
Model
SF3008PLUS
SF6012PLUS
SF6012PLUS
SF6016PLUS
SF6024PLUS
Laser Power (kW)
1.5-3
1.5-3
1.5-3
1.5-3
3-6
Max Length of Tube (mm)
3000
6500
6500
6500
6500
Scope of Tube Size (mm)
Φ16-80 □16*16-80*80
Φ15-120 □15*15-120*120
Φ15-120 □15*15-120*120
Φ15-170 □15*15-170*170
Φ20-230 □20*20-230*230
Max Weight of Tube (kg)
60
120
120
160
260
X/Y-axis Positioning Accuracy (mm)
±0.05
±0.05
±0.05
±0.05
±0.05
X/Y-axis Repositioning Accuracy (mm)
±0.03
±0.02
±0.02
±0.02
±0.02
±45° Bevel Cutting
No
No
Yes
No
No
Max No-load Speed (m/min)
100
150
150
150
100
Max Rotating Speed of Chucks (r/min)
240
240
240
200
100
Max Acceleration (G)
1.5
1.5
1.5
1.5
1.0
Overall Dimensions (L*W*H, mm)
3700*1780*2410
9100*2230*2300
9100*2230*2300
9100*2230*2300
9320*3100*2500
Power Supply
Three-phase 380V, 50Hz/60Hz (custom-made)
PLUS Series High-speed High-precision Tube Laser Cutting Machine
Special for Small Tube

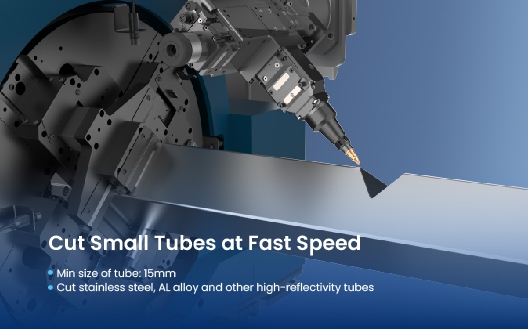

Its laser generator adopts laser energy precise-control technology to make cutting incision smooth and avoid edge & angle burning, overburning, burr or thermal deformation while dealing with small tubes.
* Min size of tube: 15mm * Cut stainless steel, AL alloy and other high-reflectivity tubes
Pioneer Ultra-fast Tube Cutting Technology
With this innovative craft, it has superior dynamic performance and is roughly 50% faster than other similar models. The rear chuck can blow away cutting residues in time, lowering failure probability caused by getting stuck.
* Max acceleration: 1.5G * Max rotating speed of chucks: 240r/min * Max no-load speed: 150m/min
±45° Bevel Cutting

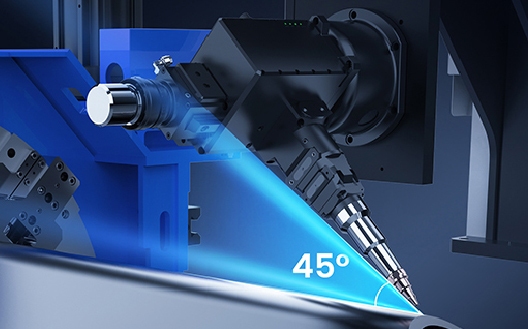

Its autofocus laser cutting head and two pneumatic chucks special for beveling can cut round, square and rectangular tubes, angle and channel steels into ±45° bevels, getting ready for later welding. Such one-step operations will certainly raise cutting precision and speed. Notes: 6012GPLUS comes standard with this function, but it is optional for other models.

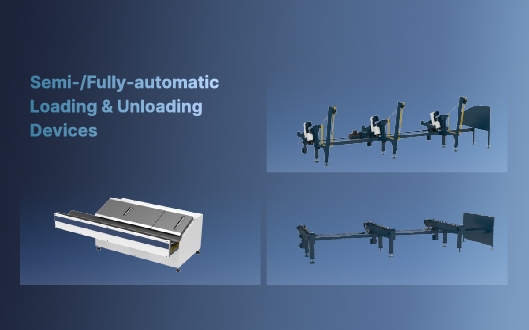

Semi-/Fully-automatic Loading & Unloading Devices
With intelligent control mode, users may load multiple tubes in one go. After being cut, tubes will slide down from turning plates automatically to lessen waiting time and make unloading continuous.
* Servo control * Driven by precision motor
Rich Optional Functions
To further tap potentials, we have developed functions below, just in order to offer users better cutting by this simply-designed machine that enjoys rich functions.
* Cut with 0 tailing Unique over-the-chuck cutting is available to cut with ultra-short or even 0 tailing * BCW profile scanner Measure and compensate for deviation between tube and drawings in real time * Automatic slag cleaner Remove slags from tube’s inner wall during cutting and keep it clean enough
Application Industry ﹀
This machine is primarily utilized in industries requiring precision metal tubes, such as automotive parts, aerospace, medical device and furniture. Additionally, it also serves sports equipment and general precision engineering. The machine’s ability to perform fast, precise cuts with minimal setup makes it ideal for high-mix, high-volume production.
